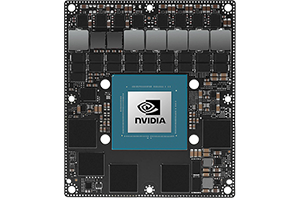

NVIDIA Jetson AGX Orin 64GB Module
Send us an enquiry and we will confirm availability, pricing and delivery, then arrange your order by invoice.
The NVIDIA Jetson AGX Orin 64GB Module delivers up to 275 TOPS of AI performance in a compact, production-ready form factor. With 64GB memory and configurable power from 15W to 60W, it provides more than eight times the performance of Jetson AGX Xavier for advanced edge AI workloads.
Powered by the NVIDIA Jetson software stack, the module helps developers build and deploy generative AI, computer vision and autonomous machine applications efficiently. Its scalable architecture makes it ideal for demanding embedded systems requiring high AI performance and power efficiency.
Popular applications:
- Advanced robotics
- Autonomous machines
- Computer vision
- Industrial automation
- Generative AI at the edge
- AI Performance: 275 TOPS (INT8)
- GPU: NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 Tensor Cores
- Max GPU Freq: 1.3 GHz
- CPU: 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
- CPU Max Freq: 2.2 GHz
- DL Accelerator: 2x NVDLA v2.0
- DLA Max Frequency: 1.6 GHz
- Vision Accelerator: PVA v2.0
- Memory: 64GB 256-bit LPDDR5 204.8 GB/s
- Storage: 64GB eMMC 5.1
- CSI Camera: Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)
- Video Encode: 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1
- Video Encode: 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60| 22x 1080p30 (H.265) H.264, VP9, AV1
- UPHY: Up to 2 x8, 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint) 3x USB 3.2 Single lane UFS
- Networking: 1x GbE 4x 10GbE
- Display: 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
- Other I/O: 4x USB 2.0 4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs
- Power: 15W - 60W
- Mechanical: 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
